BIOVECTROL® 10EM is a new concept, water-based, multifunctional, eco-environmentally
friendly solution based on unique concoction of botanical extracts and Etofenprox®1 design to protect and enhance animal health.
|
|
|
Functions |
|
BIOVECTROL® 10EM, has the following effective functions: |
|
|
|
|
|
Basic Bacterial Activity In Animal Farms |
|
TEST MICRO ORGANISMS |
Initial count of test micro organism per ml of test mixture |
Average count of surviving test micro organism per ml of test mixture at 45 & 60 minutes |
Percentage of test microorganism inactivated at 45 & 60 minutes |
Salmonella Enteritidis phage
Type 4 (Poultry Isolate) |
41 x 106 |
0 |
> 99.99% |
Salmonella Typhimurium
(Poultry Isolate) |
91 x 106 |
0 |
> 99.99% |
Escherichia Coli
(Poultry Isolate) |
95 x 106 |
0 |
> 99.99% |
Escherichia Coil O157:H7
(Cattle Isolate) |
47 x 106 |
0 |
> 99.99% |
Pasteurella Multicoda
(ATCC 12948) |
19 x 106 |
0 |
> 99.99% |
Salmonella Choleraesuis
(ATCC 10708) |
57 x 106 |
0 |
> 99.99% |
Actinobacillus Pleurophbcillus
(Pig solate) |
28 x 106 |
0 |
> 99.99% |
Test conducted by Agri-Food & Veterinary Authority of Singapore (AVA), yields the above results. BIOVECTROL® 20EM was diluted at 1:80 and effectiveness against various bacteria were observed following a 45 and 60 minute exposure. |
|
|
|
|
Basic Veridical Activity In Animal Farms |
|
TEST VIRUS |
(%) Reduction after 45
minutes exposure |
(%) Reduction after 60
minutes exposure |
Classical Swine Fever Virus |
≥ 99.9% |
≥ 99.9% |
Aujeszky Disease Virus |
≥99.999% |
≥99.999% |
Infectious Bronchitis Virus |
≥99.999% |
≥99.999% |
Newcastle Disease Virus |
≥99.999% |
≥99.999% |
Test conducted by Agri-Food & Veterinary Authority of Singapore (AVA), yields the above results. BIOVECTROL® 20EM was diluted at 1:80 and effectiveness against various bacteria were observed following a 45 and 60 minute exposure. |
|
|
|
|
Insecticide |
|
The active ingredient Etofenprox is environmentally friendly and is non-poisonous,
as characterized by a very high Lethal Dose2 (LD50 > 42,800mg/kg) on lab rat (the
value is 14 times safer than table salt). |
|
|
|
Toxicology |
|
|
|
|
|
|
|
The Etofenprox is effective against a broad spectrum of vectors and pests including mosquitoes, flies, cockroaches, triatomine bugs, fleas, etc.
By virtue of biodegradable and photodegradable properties of BIOVECTROL® 10EM, long term and repeated applications will not pose any environmental pollution. |
|
|
|
|
|
|
|
|
Sub acute dietary studies for 13 weeks on rats and mice did not show any adverse effects. |
|
|
|
|
Long term feeding toxicity studies on rats, mice and dogs did not show any adverse
effects. Mutagenicity, teratogenicity and three-generation reproduction studies did
not show noticeable abnormalities. |
|
|
|
|
|
|
|
|
No skin and eye irritation on rabbits.
Inhalation toxicity (Rat) LD50 > 5,900 mg/m3 |
|
|
|
It provides a safe and effective method of protection as it has no harmful influence to human, avian and non-target organisms. |
|
|
|
Test has shown that BIOVECTROL® 10EM being water-based can be sprayed on animal directly without causing any discomfort and duress. |
|
|
|
|
The reduction in larva and adult vector population (indoor and outdoor) will
consequently decrease man-vector contact, thus promoting a healthier and more
hygienic living environment. |
|
|
|
|
|
Vectors / Pests |
Stage |
Method |
LD50 or LC50 |
Culex Pipiens |
Larva |
Immersion |
0.0054 ppm |
Culex Quinquefasciatus |
Adult |
WHO test kit |
0.0036 % |
Anopheles Albimanus |
Adult |
WHO test kit |
0.009 % |
Anopheles Gambiae |
Larva |
Immersion |
0.009 % |
Anopheles Quadrimaculatus |
Larva |
Immersion |
0.00085 ppm |
Anopheles Stephensi |
Larva |
Immersion |
0.0073 ppm |
Aedes Taeniorhynchus |
Adult |
Aerosol |
0.0013 ppm |
Musca Domestica |
Adult |
Topical |
0.064 μg / - |
Stomoxys Calcitrans |
Adult |
Topical |
0.0093 μg / - |
Blattella Germanica |
Adult |
Topical |
0.209 μg / - |
|
|
|
|
|
|
Recommended Dilution Ratio |
|
Product |
Usage |
Recommended Effective
Dilution Ratio |
Remarks |
BIOVECTROL® 10EM |
Disinfectant
Against AFS |
1:160
1:160 |
For greater protection, can
reduce to 1:100 |
For general human
disinfection usage |
1:200 |
Odour control |
1:160
|
|
Insecticide only |
1:200 |
|
|
|
|
|
Recommended Preparation Procedure For Usage |
|
1. |
Shake the BIOVECTROL® 10EM bottle vigorously to ensure a complete mix of the
solution due to extended storage of the product. |
|
|
2. |
Based on the desired application, pour out the right amount of BIOVECTROL® 10EM product with a measuring cup. |
|
|
3. |
Use an empty bottle and add up to 200 - 300 ml of water and pour in the BIOVECTROL® 10EM, close the cap and shake the mixture vigorously for at least 10 seconds to ensure a good mix of the pre-mixed solution. |
|
|
4. |
Prepare the corresponding amount of water in a water container based on the desired application, pour the pre-mixed BIOVECTROL® 10EM (Step 3) into the container and stir thoroughly, and the diluted solution is now ready for application |
|
|
5. |
Use hand-operated, electrical and/or oil-powered water fogging/spraying equipment to apply the BIOVECTROL® 10EM diluted solution into the air to allow the water mist to float in the air and descent by gravity onto the surface of
building. The solution can also be applied by spraying directly onto the wall and floor surfaces, direct the jet closer to the cracks/opening to ensure a deeper penetration and cleaning effects. Make sure we can see visibly that the floor surface is adequately wet, however be mindful to avoid wastage. |
|
|
6. |
It is safe to apply the disinfectant BIOVECTROL® 10EM solution on the animals with the animals in the building. |
|
|
7. |
Reminder: Do not keep diluted solution for more than a week. It is always best to finish the application of the BIOVECTROL® 10EM diluted solution on the same day of preparation. Keep solution away from direct sunlight and heat; do not keep solution in the car boot during summer. |
|
|
|
|
Storage & Handling Precautions |
|
• Keep container closed when not in use.
• Store away from foodstuffs and feeds.
• Avoid direct sunlight and high temperature storage.
• General ventilation and industrial protective clothing is sufficient. |
|
|
|
Packing |
|
Packed in HPDE bottle, the volume of each bottle is ONE litre. One Carton packaging has 12 bottles and One Pellet packaging has 50 cartons. The dimension of each carton is: 385 x 295 x 280 mm. |
|
|
|

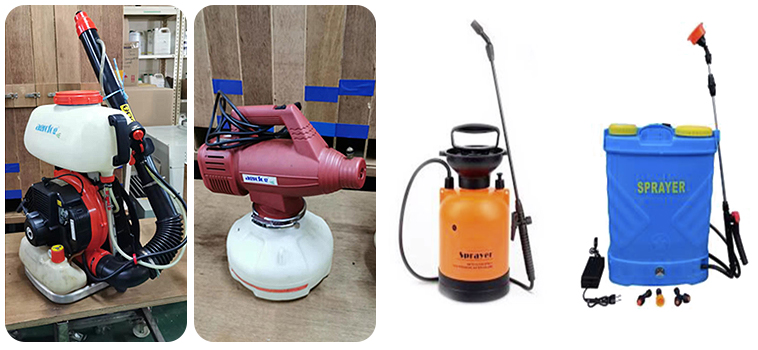

Suggested Fogging/Spraying Systems |
|
|
|
|
1 ETOFENPROX®, is a unique “CHO – compound” composed of Carbon, Hydrogen and Oxygen only. ETOFENPROX® has been highly evaluated through the World Health Organization Pesticide Evaluation
Scheme (WHOPES) and successfully approved by the Division of Tropical Diseases, WHO in 1997 with
code number WHOPES/97.24.1. |
|
2 In toxicology, the median lethal dose, LD50 (abbreviation for "lethal dose, 50%”) value for a substance is the dose
required to kill half the members of a tested population after a specified test duration. LD50 figures are frequently used
as a general indicator of a substance's acute toxicity. A lower LD50 is indicative of increased toxicity |
|
